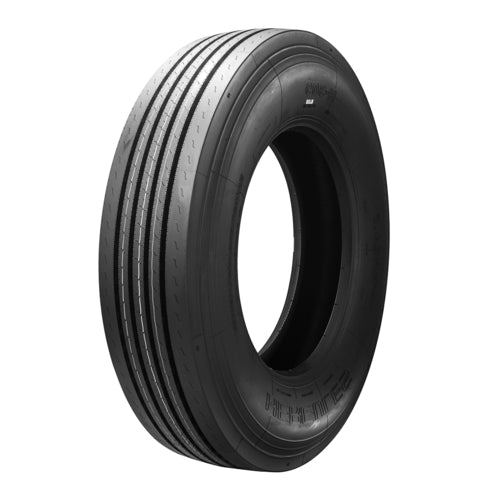

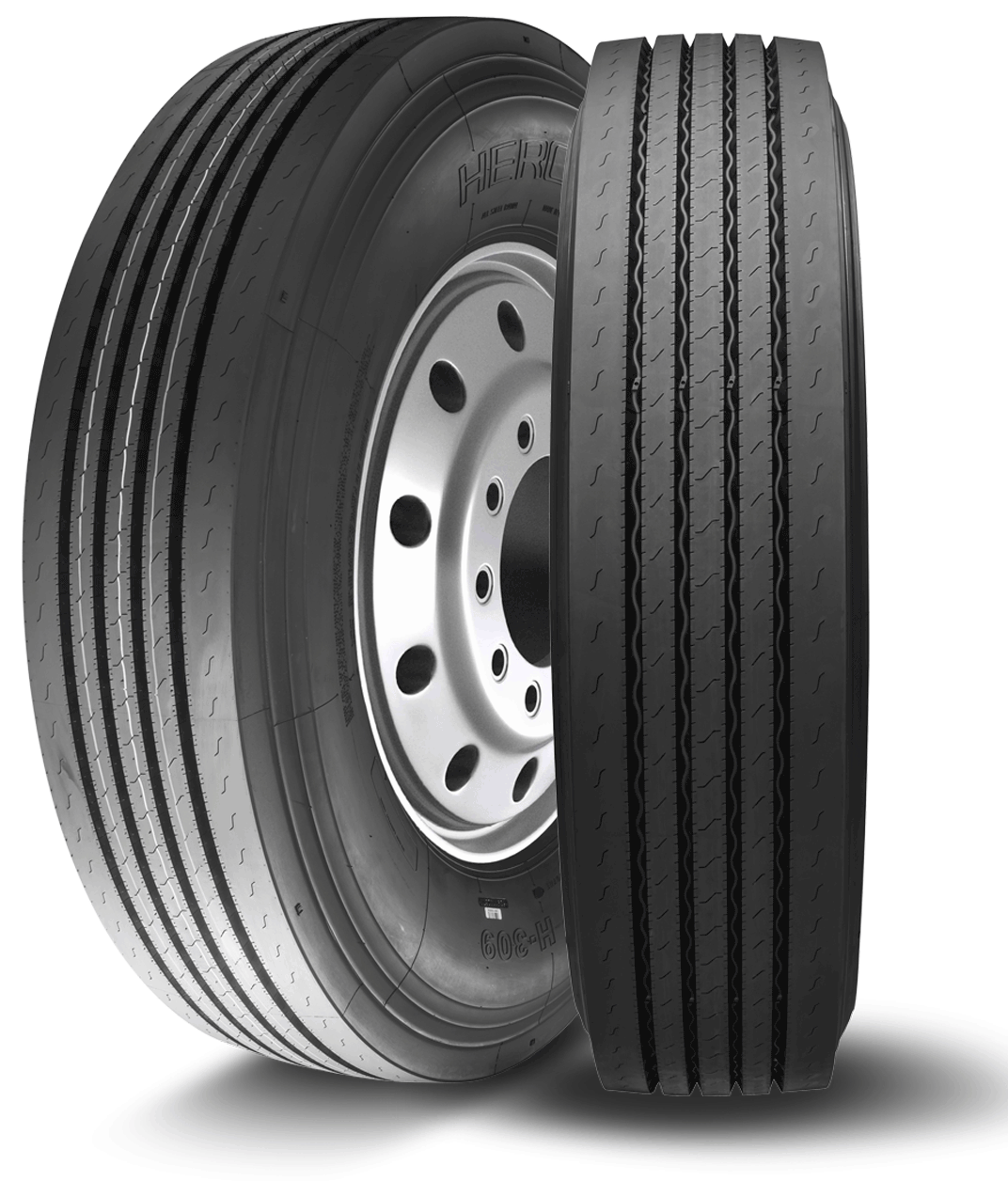

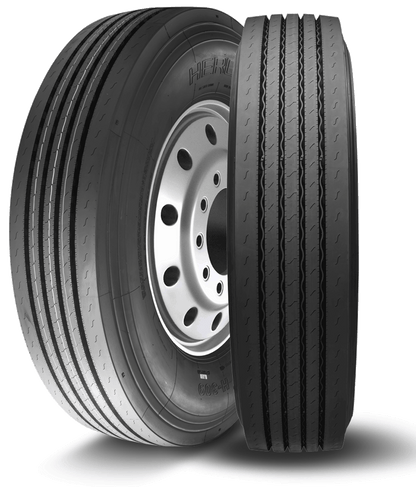

285/75R24.5 - HERCULES H-309 | REGIONAL ALL-POSITION | 14PLY

The Hercules H-309 Regional | High Scrub | Steer/All-Position tire offers a range of features and benefits designed to enhance performance and durability.

Hercules is committed to providing high-quality tires with advanced features for optimal performance. Visit the Tire Specs section below and View All Specs for detailed information on the manufacturing origin for each part number.

Hercules H-309 Regional | High Scrub | Steer/All-Position 285/75R24.5/14

TIRE FEATURES & BENEFITS

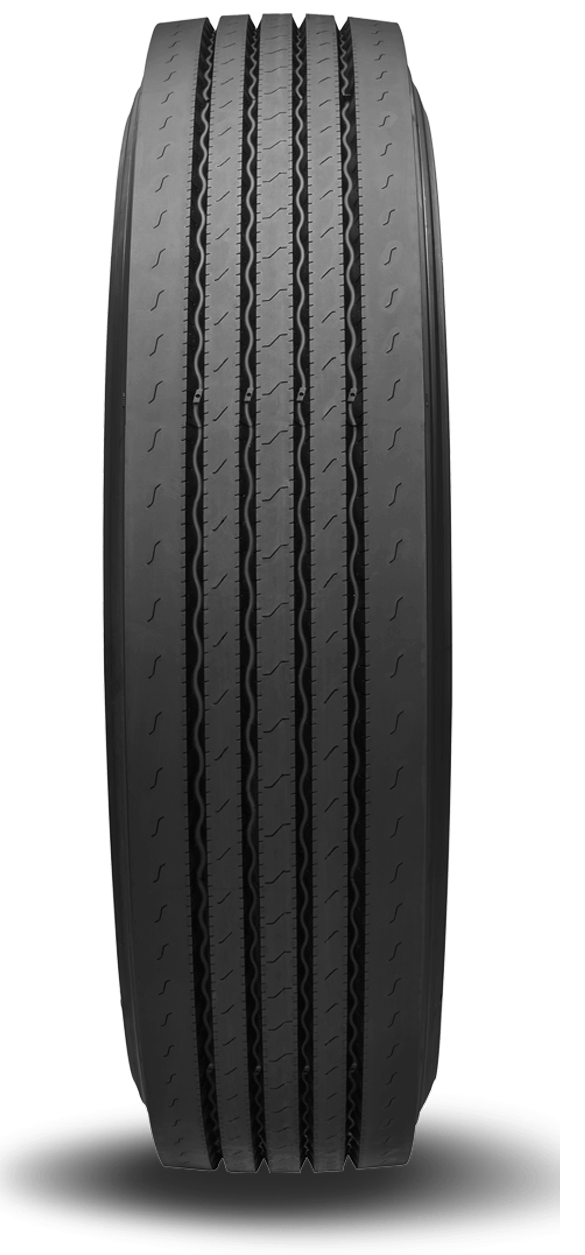

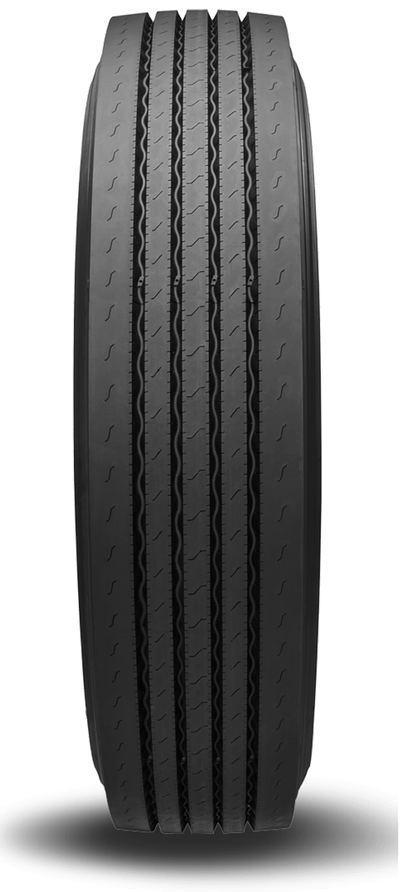

• Five-Rib Design: Promotes even wear in regional applications.
• Enhanced Solid Shoulder Design: Resists scrub wear and minimizes irregular wear.
• Innovative Groove Technology: Maximizes tear resistance while ejectors minimize stone retention.
• Chip and Cut Compound: Provides durability in high scrub conditions.

Performance Promise

• 72-MONTH: These tires have a Limited Protection Policy against defects in workmanship or material for 72 months from the date of purchase.
• WORKMANSHIP & MATERIALS: If this tire becomes unserviceable due to a flaw in workmanship or materials, we will replace it at no charge during the first 50% of tread life.
• CASING ALLOWANCE & RETREADS: Tires carry a casing allowance for 2 retreads.

Specifications

• Supplier # 92783
• Product # 92783
• Z # 156001711
• Size 285/75R24.5/14
• Ship Weight (lbs.) 122.13
• Load/Speed 144/141M
• Ply 14
• Seasonal Designation N
• Sidewall Black Wall
• Directional N
• Load Range G
• Max Load Dual (Lbs. @PSI) 5675@110
• Max Load Single (Lbs. @PSI) 6175@110
• Max Tire Pressure (PSI) 110
• Overall Diameter (inches) 41.34
• Rim Width Max (inches) 8.25
• Rim Width Min (inches) 8.25
• Revolutions Per Mile 519
• Ship Weight (lbs.) 122.13
• Studdable N
• Tread Depth (inches) 19
