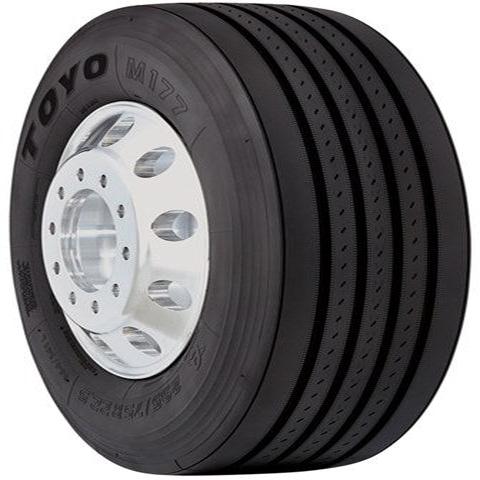

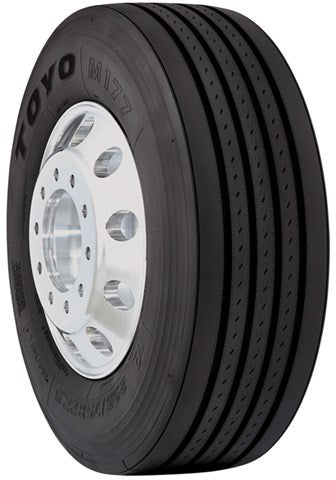

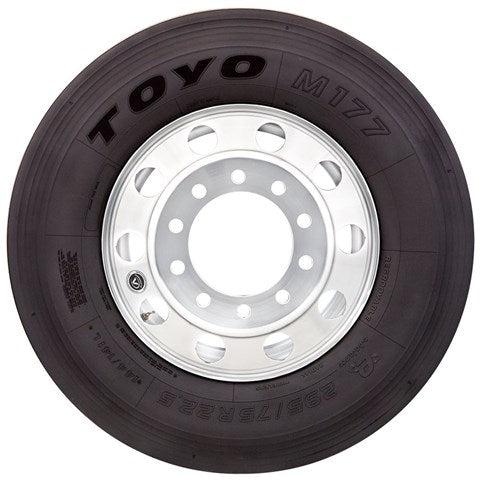

285/75R24.5 - TOYO M177 | LONG-HAUL STEER | 14PLY

The M177 steer tire delivers maximum fuel efficiency and even wear for Long-Haul operations. A deep tread, low rolling resistance tread compound, and excellent retreadability make the M177 a leading steer tire for Long-Haul applications.

M177 285/75R24.5

Application:

• Recommended: Steer
• Suitable: Trailer

Key Features & Benefits:

• Maximum Removal Miles: Deep tread delivers long, even wear.
• Maximum Fuel Efficiency: Low rolling resistance tread compound minimizes fuel consumption and qualifies it as a SmartWay-verified steer tire.

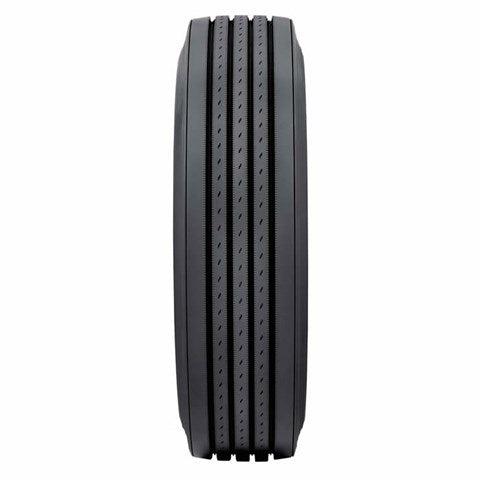

• Excellent Performance and Safety: Computer-optimized tread design with four straight grooves, deep sipes, and multi-pitch grooves provides enhanced wet and dry traction while also reducing road noise.
• Excellent Retreadability: E-balance profile minimizes growth of the tread profile and maintains a uniform and flatter tread radius for the entire life of the casing. The high-elongation top belt protects casing integrity.

Specifications

• Supplier # 547180
• Product # 547180
• Size 285/75R24.5/14
• Ship Weight (lbs) 117.50
• Load/Speed 144/141L
• Ply Rating 14
• Seasonal Designation N
• Sidewall Black Wall
• Directional N
• Load Range G
• Max Load Dual (lbs) 5675@110
• Max Load Single (lbs) 6175@110
• Max Tire Pressure (PSI) 110
• Overall Diameter (inch) 41.4
• Rim Width Max (inch) 8.25
• Rim Width Min (inch) 8.25
• RPM 502
• Ship Weight (lbs) 117.5
• Studdable N
• Tread Depth (32nds) 17.5
