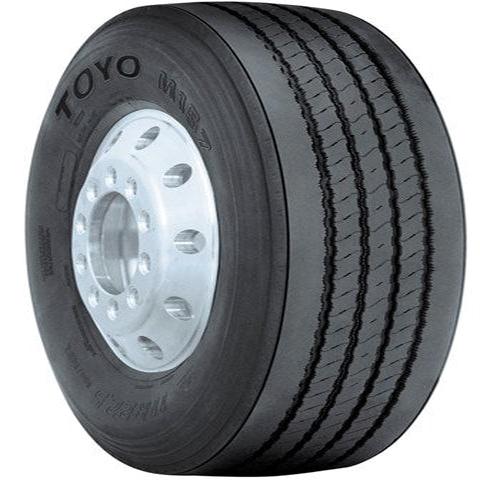

295/75R22.5 - TOYO M157 | TRAILER | 14PLY

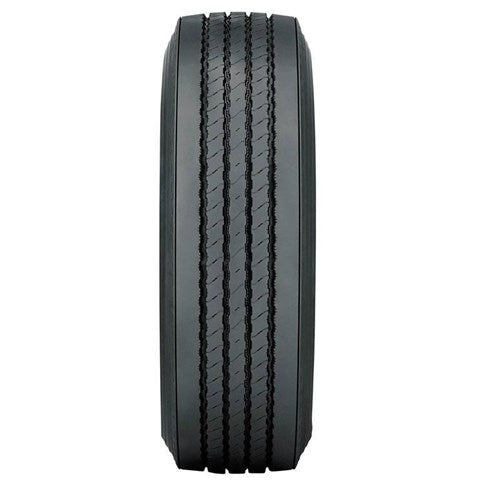

The Toyo M157 is built for extreme long-haul to regional free-rolling axle positions on trailers. Designed for operations running high miles, this tire is often pulled early due to irregular wear. It’s a fuel-efficient, free-rolling axle tire that’s also suitable for steer axle use. The four-steel-belt construction, high-elongation top belt, and enhanced high-speed casing design ensure durability and integrity. The tire features four straight grooves, a computer-optimized tread design, deep sipes, and multi-pitch grooves to enhance wet traction and reduce road noise. The low-rolling-resistant tread compound minimizes fuel consumption, qualifying this tire as a SmartWay-verified steer tire. The optimized 13/32” tread depth reduces free-rolling wear and tread squirm.

Specifications

• Tire Size 295/75R22.5
• Load / Speed 144/141L
• MPH 75
• Ply Rating 14
• Load ID G
• Approved Rim Width Range (in.) 8.25-9.00
• Tread Depth (1/32") 13
• Product Code 541400
• Weight (lbs.) 99
• Inflated Overall Diameter (in.) 39.8
• Inflated Overall Width (in.) 11.1
• Static Loaded Radius (in.) 18.5
• Static Loaded Width (in.) 12.1
• Max Load Single (lbs/psi) 6175/110
• Max Load Dual (lbs/psi) 5675/110
• Revs Per Mile 521
