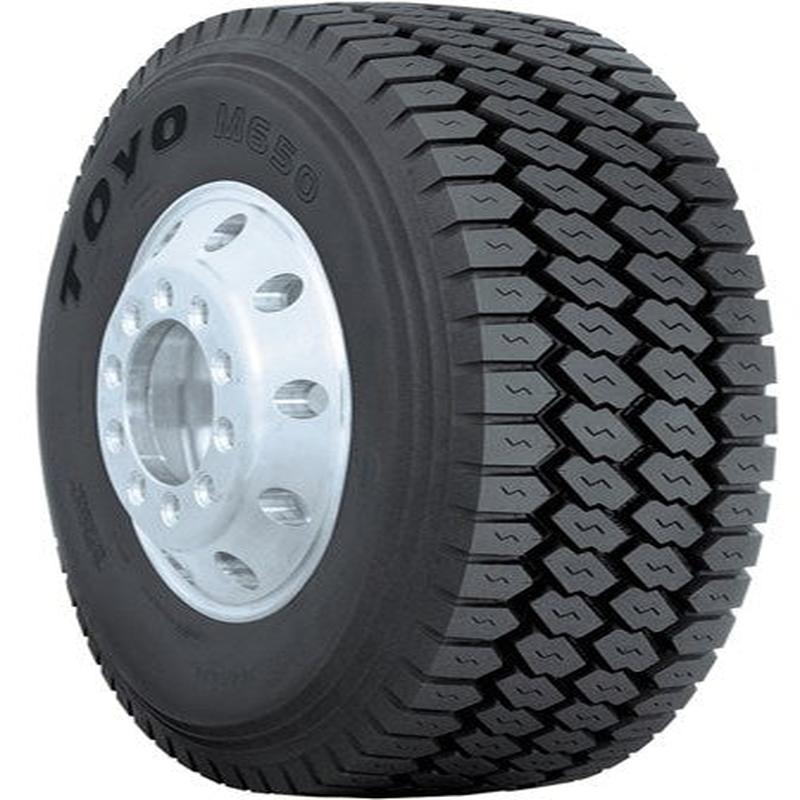

11R22.5 - TOYO M650 | OPEN-SHOULDER DRIVE | 14PLY

Built with a deep tread, this tire is designed to maximize fuel efficiency and deliver great traction. Excellent wear performance and exceptional retreadability make it preferred by fleets.

The Toyo M650 11R22.5 G/14PLY Tires is a Commercial Truck - Steer tire. Manufacturer part number: 558820. The Toyo M650 is a long-haul steer position tire designed for demanding operations. This tire offers excellent even wear for maximum removal mileage. Stone drilling is prevented at low speeds by the V-shaped groove design which ejects packed stones and the high-elongation top belt protects the tire’s casing. The E-balance minimizes growth of the tread profile giving the tire a flatter tread radius and maintains uniformity for the life of the casing. This tire minimizes fuel consumption with its low rolling resistance construction. The E-balance offers an optimal footprint to improve wear and increase mileage performance. The long and even wear of this tire is further enhanced by the wide five-rib pattern with a solid outer rib that optimizes tread depth.

FEATURES AND BENEFITS

MAXIMUM FUEL EFFICIENCY

- Low-rolling-resistance tread compound minimizes fuel consumption and qualifies it as a SmartWay-verified drive tire.

EXCELLENT TRACTION

- Deep 28/32” open-shoulder tread provides traction in both wet and dry conditions.

- High-traction, high-torque tread design prevents block tearing.

MAXIMUM REMOVAL MILES

- E-balance provides optimum footprint wear to increase mileage performance.

- Deep 28/32” tread depth delivers longer life.

- Tie bars in shoulder bridge reduce tread block movement.

EXCEPTIONAL RETREADABILITY AND CASING DURABILITY

- E-balance profile minimizes growth of the tread profile and maintains uniform and flatter tread radius for the entire life of the casing.

- V-shaped groove design ejects packed stones at low speeds to prevent stone drilling.

- High-elongation top belt protects casing integrity.

Specifications

• Tire Size 11R22.5
• Load / Speed 144/142L
• MPH 75
• Ply Rating 14
• Load ID G
• Approved Rim Width Range (in.) 7.50-8.25
• Tread Depth (1/32") 28
• Product Code 558820
• Weight (lbs.) 125
• Inflated Overall Diameter (in.) 42.0
• Inflated Overall Width (in.) 11.1
• Static Loaded Radius (in.) 18.8
• Static Loaded Width (in.) 12.1
• Max Load Single (lbs/psi) 6175/105
• Max Load Dual (lbs/psi) 5840/105
• Revs Per Mile 495
